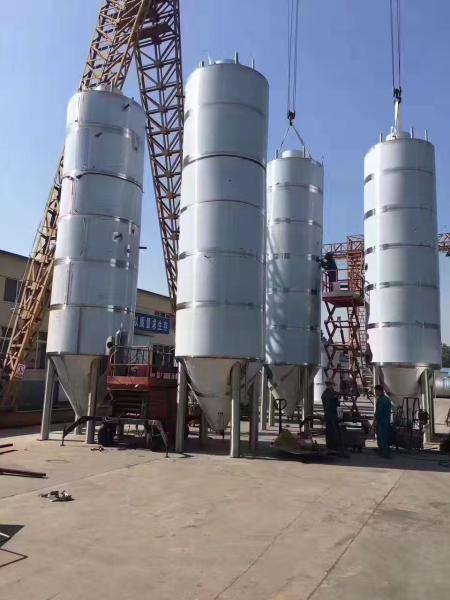

120 bbl Large Beer Fermenter Turnkey Brewery Line Jacketed Conical Fermenter

CGET, over 20 years brewery equipment manufacturing history.

big large brewery turnkey brewery complete brewery whole plant

120bbl fermenter

jacketed

conical fermenter

stainless steel

Detailed specifications:

1. Exterior of tank 2B Plate, interior of tank Mechanical polish, inner body polishing ratio ≦0.6μm;

2. Design pressure 30 psi , using pressure:15psi

3. Interior shell: 304 stainless steel, thickness 3mm; Exterior shell thickness 2mm;

4. Effective volume: 120bbl;

5. Racking Arm and discharge port with butterfly valve and fittings;

6. Side manhole; With an extra top manway.

7. Dual zone dimple cooling jacket with glycol inlet and outlet;

8. Polyurethane insulation thickness 80mm

9. CIP arm and spray ball

10. Relief valve, pressure regulating valve

11. Pressure gauge & Thermometer & Sample valve.

12. Four legs with brace and adjustable bolt;

13. With necessary fittings and valves

For details, please see tank drawing.

13. TIG welding with inert gas ARGON 100% -

14. All the pipes and pieces in direct contact with the product will be SUS304 stainless steel sanitary grade food. -

15. All connections between pipes and tanks will be Tri clamp

dehui established in 1997,headquartered in Jinan,Shandong provide,registered capital 52,300,000,with more than 800 staff.The company is a High-tech enterprise on the fermentation field,and the productive modern service enterprise on the fermentation field.Provide the customers with the systemic solution of non-standard technical renewal on the fermentation filed,is committed to the First Person on the fermentation service outsourcing field!

Company provides fermentation project technology service to enterprises in the area of Alcohol, condiment, biopharmacy and any other bio-fermenting lines.Service is including technology proposal design,a complete set of equipment,application project installation,training technicians,financing service etc five system links.

Our products have been exported to many countries in the world,and our company has established long-term and friendly cooperative relations with Russia, the United States, Canada, Britain, Australia, New Zealand, Kenya, Moldova, Israel, Singapore, Philippines, India, Holland and many other countries and regions,awarding high praise from our customers.
