500L 1000L SS304 Microbrewery Equipment Turnkey Brewpub Systems
Vertical Type
microbrewery turnkey brewery complete brewery whole plant, fitted
in one 40HQ container

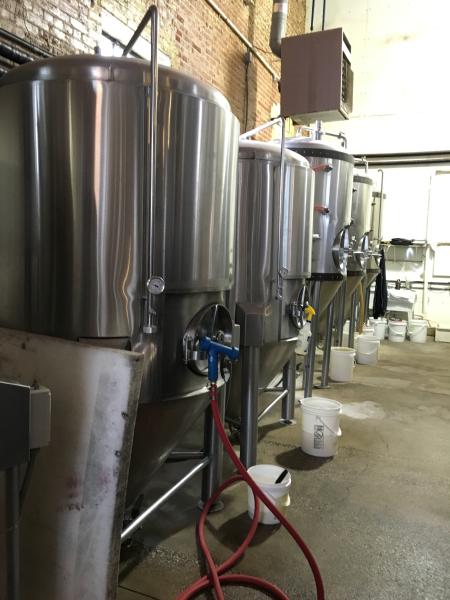

all size Fermentation tank, conical tank, pressurized, 3.5bbl,
5bbl, 7bbl, 10bbl, 15bbl, 20bbl, 30bbl.
bright beer tank for maturation, jacketed, glycol cooling,
stainless steel
Suitable for economic equipment of basic technology but of
constructive quality and professional design, that can be assembled
easily by means of the labeling of its components and once
assembled and connected it is plug and play, to be operated with
ease in the brewing and CIP cleaning processes.
Condition: New - Minimum guarantee: 1 year - Certification, CE
Marking and Instruction Manuals of all electric machines and
components.
Incoterm FOB General Constructive Specifications - SUS304 stainless
steel with quality certificate - Indoor tank TH = preferred 3 mm /
minimum 2.5 mm - Tank exterior TH = preferred 2 mm / minimum 1.5 mm
False filter bottom filter easily removable triangular wire or
laser cut with openings from 0.7 to 0.9 mm, with support on the
bottom and handles embedded for easy removal and cleaning. - Type
of agitation: variable speed gearmotor by VFD and rake with blades,
reversible rotation and extendable plate to push spent grain out. -
Port of entry of the Mash above the level of the false bottom -
Port of recirculation of the wort of low absorption of oxygen
(lateral or superior). - Top irrigation ring, perforated or with
spraying nebulizers - Ring of collection of must with 4 drainages
in the background - Grant with glass peephole or liquid level for
observation of the pressure balance control between the lauter and
the wort pump, with CIP. - Thermowell with temperature probe PT-100
- 2 x 360 ° CIP spraying ball.
Specifications of the Whirpool - Whirpool minimum working volume:
1,250 liters +% head space - Manhole oval of 430-450 mm without
shadows on its side with opening towards the inside. - Tangential
side entrance port Whirpool type with reduction to 1 " - Glass
liquid level of sanitary type with connection to the CIP circuit -
Compensation of internal pressure through the CIP tube of the glass
liquid level - 2 x 360 ° CIP spraying ball - Total drainage port -
Whirpool clean drainage port.
A4.- Control Cabinet of Brewhouse / minimum requirements -
Preferred location located above the valve manifold of the
brewhouse. Other locations are also acceptable. - Drive and Pump
speed control HLT - Wort pump speed drive and control - Drive and
Speed Control of CLT pump - Drive and speed control of the Mash Tun
agitator gearmotor - Actuation and speed control of the gear motor
Lauter Tun Rake Reverse drive to extract the spent grain -
Temperature control of the Mash Tun with ramps for maceration by
temperature steps - Temperature control of the HLT.
