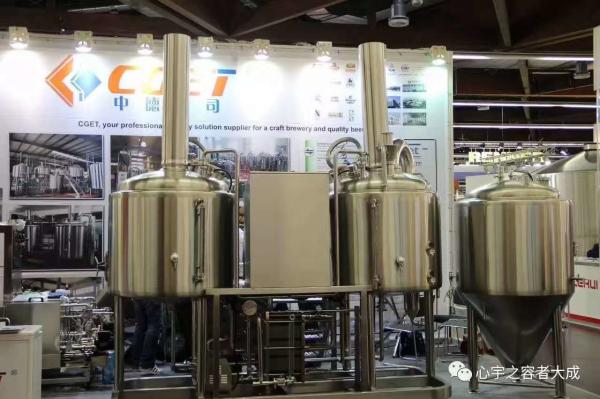

Small Commercial Brewing Equipment Mini Brewery Plant Electrical Or Steam

Mash/Lauter tank

1. Material: SUS304

2. Total volume:300L, effective volume:200L;Conical head

3. Thickness of insulating layer:80mm;

4. Inner Body Thickness: 3mm.

5. With cleaning ring, top CIP spray 2 balls

6. TOP mechanical agitation: cycloidal reducer;

7. Milled plate false bottom :4mm

8. The manhole with sight glass

9. Thermowell tube with PT 100 temperature probe;

10. Ribbon polished for the welded place;

11. With Liquid meter

12. Condensate water pipe

13. Three legs with brace and adjustable bolt;

14. Necessary fittings and valves.

Decorative tube

LED Sight light

Digital display gauge

Kettle/ Whirlpool tank

1. Material: SUS304

2. Effective volume:200L;Conical head

3. Electrical coil heating,power 10 kw

4. Condensate water pipe

5. Thickness of insulating layer: 80mm;Rock wool

6. Inner Body Thickness: 3mm.

7. Top two CIP Spray balls

8. Ribbon Polished on welds

9. The manhole with sight glass;

10. Thermowell tube with PT 100 temperature probe;

11. with Liquid meter

12. Three legs with brace and adjustable bolt;

13. With tangent line

14. Necessary fittings and valves.

Decorative tube

LED Sight light

Digital display gauge

1. Q: Are you a manufacture?

A: Yes, we’ve been in producing, exporting and installing brewery equipment for 21 years.

2. Q: Have you sold equipment to our country before? Which brewery is it?

A: We have 600+ world-wide customers, covering every continent. With your detailed request of brewery,

we’ll provide you contacts for calling and visiting our successful brewery projects.

3. Q: What kind of equipment should I choose?

A: With knowing your expected beer output & brewery area dimension, we will choose the most appropriate equipment for you.

4. Q: Is customize available?

A: Sure, and that’s the spirit of craft beer brewing: multy-possibilities & being unique.

5. Q: Will I get design or solutions for my brewery?

A: Definitely, we design brewery layout for every client. Further more, beer recipes and brewing tutoring if needed.

6. Q: How should I install the brewery?

A: You will get our full and accurate online guidance, including video, picture instruction, etc. If you need a paid installation service, our experienced technicians will handle the whole process as a turnkey project.

7. Q: Is your system manual or automatic?

A: All the electric devices are controlled by PLC system. It’s semi-auto on brewhouse and full-automatic on fermentation. You can read all status of brewing on the screen/gauges.

8. Q: How should I pay?

A: After signing contract, 30% by T/T in advance and balance before shipment.

9. Q: How long does the production take?

A: Generally 30 working days since receipt of down-payment.

10. Q: What about quality warranty?

A: We provide 5 years warranty for main equipment, and 1 years for electric devices.

dehui established in 1997,headquartered in Jinan,Shandong provide,registered capital 52,300,000,with more than 800 staff.The company is a High-tech enterprise on the fermentation field,and the productive modern service enterprise on the fermentation field.Provide the customers with the systemic solution of non-standard technical renewal on the fermentation filed,is committed to the First Person on the fermentation service outsourcing field!

Company provides fermentation project technology service to enterprises in the area of Alcohol, condiment, biopharmacy and any other bio-fermenting lines.Service is including technology proposal design,a complete set of equipment,application project installation,training technicians,financing service etc five system links.

Our products have been exported to many countries in the world,and our company has established long-term and friendly cooperative relations with Russia, the United States, Canada, Britain, Australia, New Zealand, Kenya, Moldova, Israel, Singapore, Philippines, India, Holland and many other countries and regions,awarding high praise from our customers.
