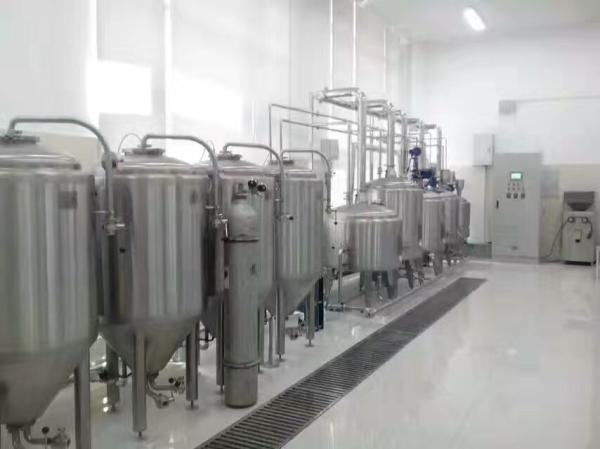

100L Malt Drink Small Brewery Equipment For Pilot Brewery , Testing Brewery

Product Categories

Craft Beer Brewing Equipment [29]
Large Scale Brewing Equipment [23]
Microbrewery Equipment [35]
Copper Brewing Equipment [13]
Stainless Steel Brewing Equipment [22]
Beer Fermentation Equipment [13]
Beer Filling Machine [11]
Brewery Production Line [19]
Glass Bottle Filling Machine [11]
Beverage Bottling Equipment [10]
Packing Production Line [20]

Shandong Dehui Fermentation Intelligent Equipment Co.,Ltd

Contact Now

100L Malt Drink Small Brewery Equipment For Pilot Brewery , Testing Brewery

Ask Lasest Price
Brand Name :	CGET
Model Number :	CG
Certification :	CE UL ISO
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	400Set per years
Delivery Time :	40 work Days

Add to Cart

Product Details
Company Profile

100L Malt Drink Small Brewery Equipment For Pilot Brewery , Testing Brewery

100L Malt Drink Small Brewery Equipment For Pilot Brewery , Testing Brewery

Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing,lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity,sparging water, brews in certain time, brewing method etc. TonsenBrew Company accepts special design for these variations.

our brewhouse system separated to 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 20000L, use electric or steam heat. Semi-automatic control and easy to operate.

PRODUCT FEATURES:
1. Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
2. Energy saving stir structure : large cross-section impeller, 15r/min speed
3. Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4. Plow knife of filter tank separated to one foot, feet and bow plow knife
5. Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6. Material includes stainless steel 304, 316 and red copper.

7. Stainless steel brewing platform & integrated stairs or ladder with adjustable foot pads for platform leveling

8. Standard Thermometers and Thermawell Adapters

Fermenter Specifications:
Items	CG-0.1	CG-0.2	CG -0.3	CG -0.5	CG -1.0	CG-2.0
Production capacity	100L	200L	300L	500L	1000L	2000L
floor space	15m2	25m2	35m2	50m2	80m2	120m2
Total power	12kw	12kw	12kw	15/36kw	22/72kw	31/144kw
Consumption of malt	20kg	40kg	60kg	100kg	200kg	400kg
Consumption of hops	60g	120g	180g	300g	600g	1.2kg
Yeast	100g/1L	200g/2L	300g/3L	500g/5L	1kg/10L	2kg/20L

Fermentation tanks body is provided with a sandwich or cold, heating, cooling temperature. Fill the tank with the top and bottom head(or cone) are used spinning R-angle-grinding, polishing tank wall, no health corners, and fully enclosed design ensures that the material is always under a pollution-free status of the mixing, fermentation, air breathing apparatus with hole, CIP cleaning nozzles, manholes and other devices.

Technical Characteristics:

1- All AISI-304 Stainless Steel Construction
2- Jacketed & Insulated
3- Dual Zone Dimple Cooling Jacket
4- Dish Top & 60° Conical Bottom

5- 3 Stainless Steel Legs with Leveling Portstype specimen book.

Fermenter Includes:

1- Top Manway or Side Shadow less Manway
2- Racking Port with Tri-Clover Butterfly Valve
3- Discharge Port with Tri-Clover Butterfly Valve
4- 2 Tri-Clover Outlets with Butterfly Valves
5- CIP Arm and Spray Ball/Sample Valve/Safety ValvePressure Gauge
6- Thermowell with Tank Thermometer

PRODUCT FEATURES:

1- Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
2- Energy saving stir structure : large cross-section impeller, 15r/min speed
3- Sieve plate of filter tank includes welding sieve plate and milling sieve plate.

4- Plow knife of filter tank separated to one foot, feet and bow plow knife
5- Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6- Material includes stainless steel 304, 316 and red copper

Whether your in need of additional Fermenters or Bright Tanks for your existing brewery, or need an entire Brewhouse we have you covered. We can have any tank custom built to your specific size and style requirements. Copper Cladding is available on any fermenter, bright tank, mash tun/ brew kettle, lauter tun/ whirlpool etc.
