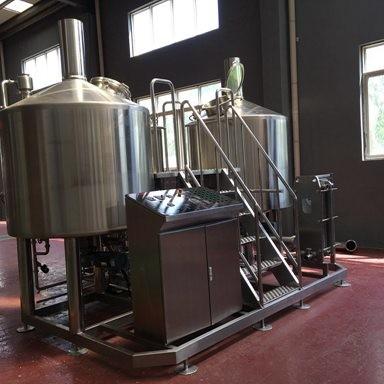

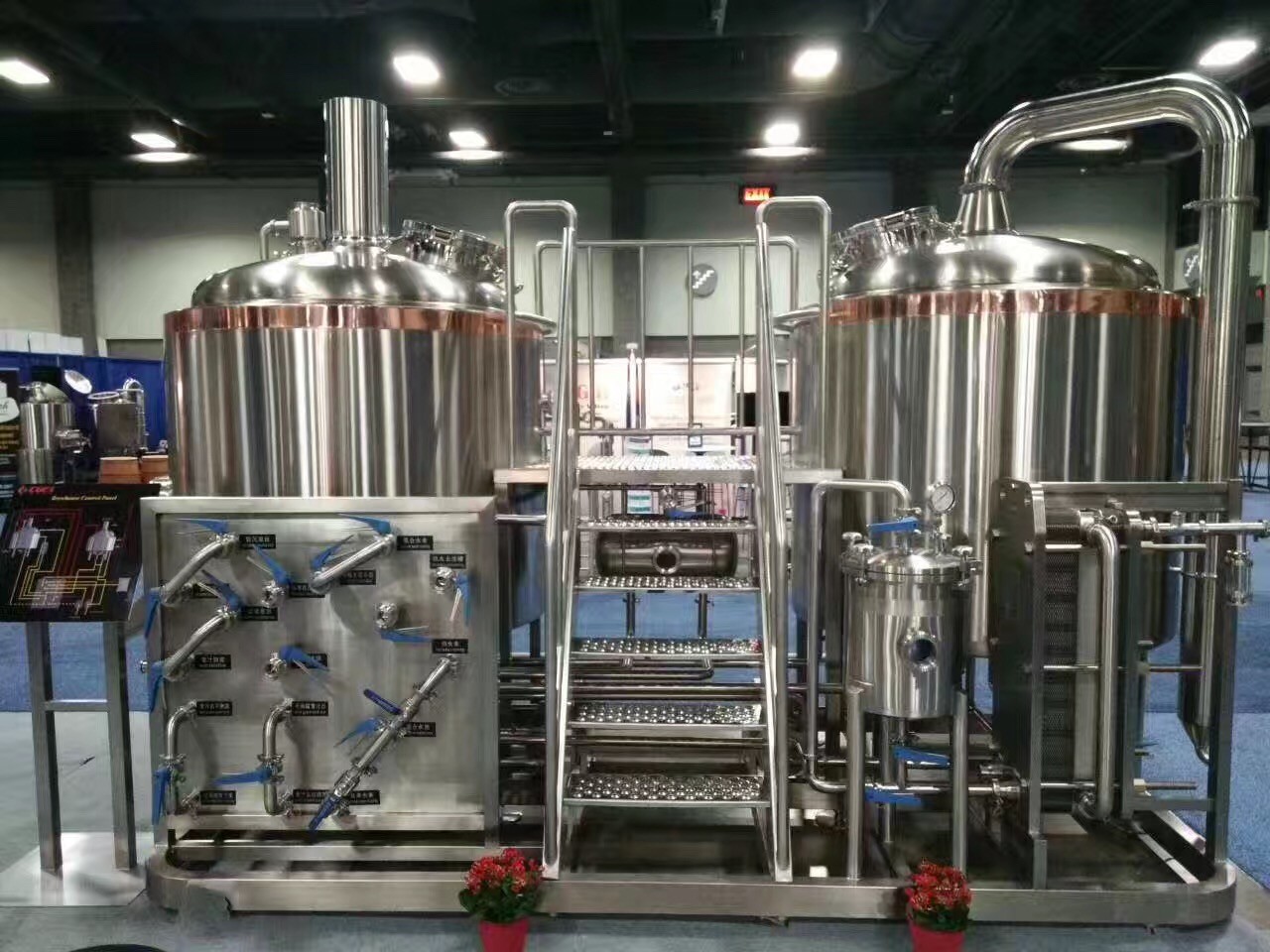

Turnkey Brewery Equipment 3 Vessel Brewhouse SS Brewing Equipment 20Bbl

20bbl 3-vessel brewhouse

steam heating

mash tun+lauter tun+brewkettle

with plate heat exchanger, all pumps

separate control cabinet

Malt mill:300-500kg/hour

1. Two Rollers;

2. The power is 3Kw;

3. Net Weight: 150Kg;

4. Dimension: 800*600*1500mm

5. With motor, belt etc.

6. Separation of the rollers adjustable

The distance between the two rollers is easy to adjust and exactly control.

7. Low noise, less than 60db.

8. no leakage of malt, convenient operation

9. High crushing efficiency, speed is fast, the malt is broken, but shell is complete, which improves the filter speed and save time.

10. Alloy roll

Lauter tun:1000L

1. Dimension:φ1460×2583mm

2. Total volume: 1000L,effective volume:1595L；

3. Thickness of insulating layer: 80mm;

4. Inner Body Thickness: 3mm.

5. With cleaning ring, 2 CIP spray balls

6. Mechanical agitation: cyclical reducer, speed ratio 43; with variable speed control

7. Milled plate false bottom; diameterφ1200mm

8. With manhole

9. Brush finished;

10. With Liquid meter

11. Condensate water pipe

12. Four legs with brace and adjustable bolt;

13. Necessary fittings and valves.

14. With mash hydrator

15. rake system

16. with back wash device from tank bottom (sieve plate bottom can be washed

17. with wort collection device

dehui established in 1997,headquartered in Jinan,Shandong provide,registered capital 52,300,000,with more than 800 staff.The company is a High-tech enterprise on the fermentation field,and the productive modern service enterprise on the fermentation field.Provide the customers with the systemic solution of non-standard technical renewal on the fermentation filed,is committed to the First Person on the fermentation service outsourcing field!

Company provides fermentation project technology service to enterprises in the area of Alcohol, condiment, biopharmacy and any other bio-fermenting lines.Service is including technology proposal design,a complete set of equipment,application project installation,training technicians,financing service etc five system links.

Our products have been exported to many countries in the world,and our company has established long-term and friendly cooperative relations with Russia, the United States, Canada, Britain, Australia, New Zealand, Kenya, Moldova, Israel, Singapore, Philippines, India, Holland and many other countries and regions,awarding high praise from our customers.
